KDS LED 4’ Strip

An all-purpose one- or two-row LED economy 4’ strip fixture kit, suitable for a wide range of applications.

All fixture parts snap together for easy installation and maintenance. Side knockouts are included for a convenience outlet, pull switch and conduit.

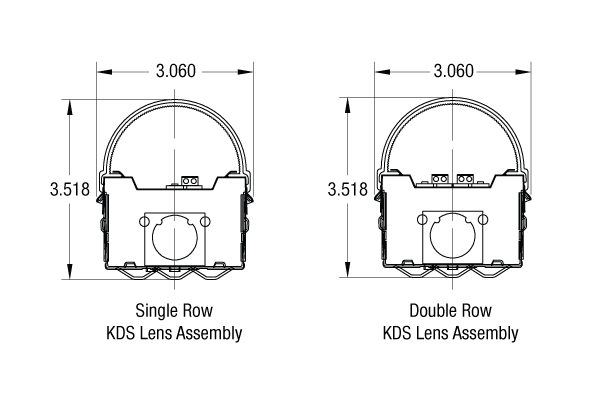

Dimensions KDS Lens

KDS LENS LED Exploded Assembly

Dimensions KDS Baffle

KDS Baffle LED Exploded Assembly

Applications

Suitable for commercial, light industrial and institutional applications such as offices, hospitals, schools and retail. Intended for surface or suspended mounting.

Features

Decorative baffle option provides contemporary look
Linear arrayed LED modules provide diffuse, but effective illumination
Modern look through lens or baffle option
Yoke and Toggle Kit suspension option available

Specifications

Housing
Heavy gauge cold rolled steel

Cover
Snap-on type to simplify installation

Ends
Metal end plates

Baffle (Option)
Steel modern look

Finish
Pre-painted white polyster polymer with minimum 82% reflectivity

Mounting
Surface or pendant mount, individually or in continuous rows
Sufficient knockouts are provided

Components

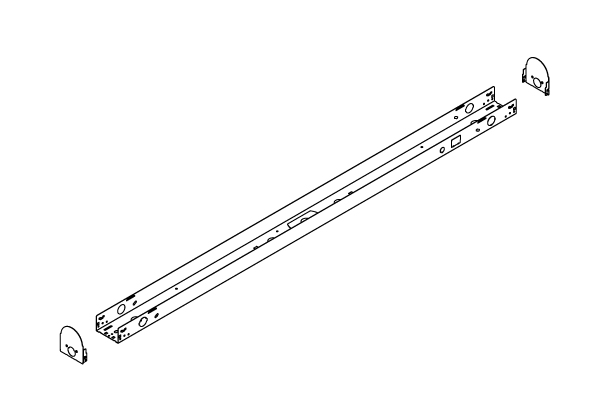

Housing and End Caps

Housing is made of heavy gauge cold rolled steel with snap-on metal end plates for the Lumieo Lens

Part No.: KDST5-140B; (2) KDSE-LED

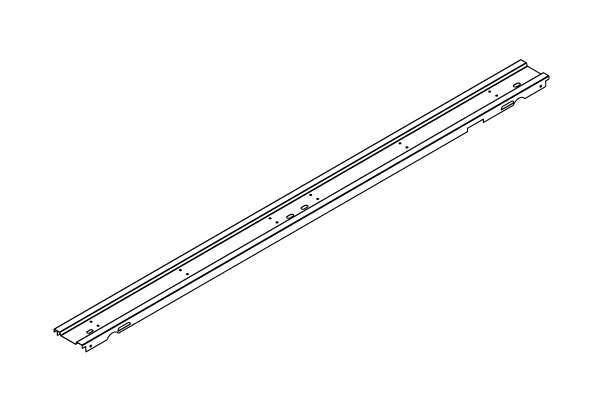

KDS LED Cover

KDS LED cover is made of heavy gauge cold rolled steel and is a Snap-on type to simplify installation

Part No.: KDS-140C-LED

Optional Add-Ons

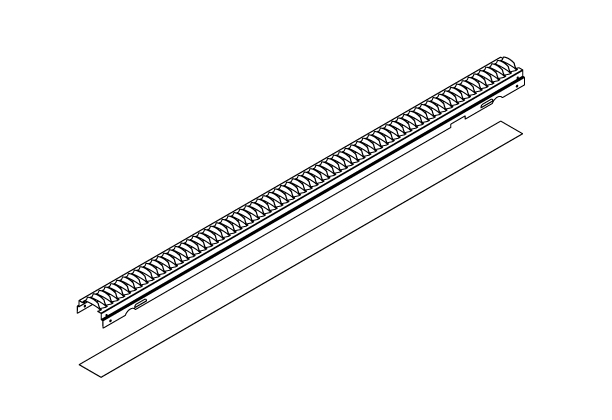

KDS Baffle with S82 Overlay

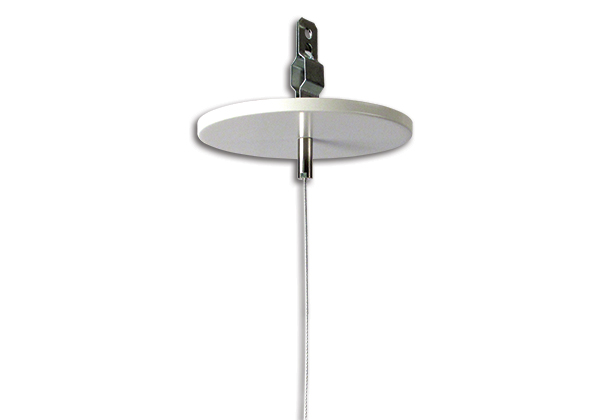

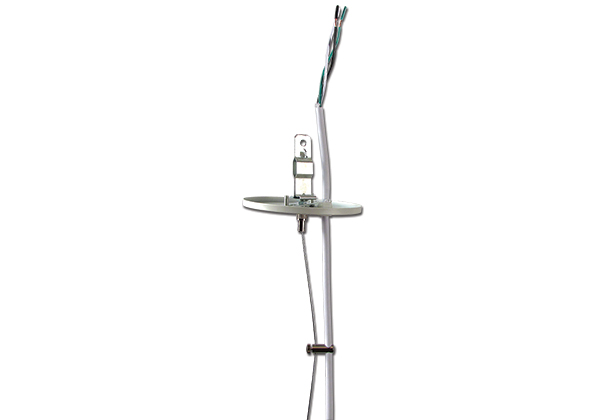

KDS Yoke and Toggle Kit
