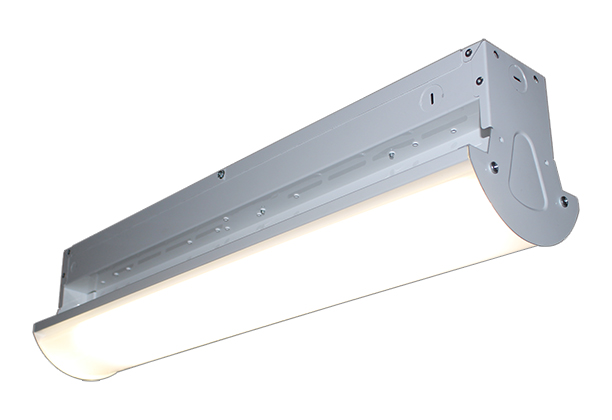

LBE Linear High Bay

The LBE is unique and attractive luminaire maximizing temperature management for optimum performance with sleek modern, appearance. Rigid construction for industrial, commercial and residential applications. Designed for easy assembly and installation in a lightweight and small size to conserve space.

  • LBE 2' End Profile Drawing

  • LBE 2' Exploded View

  • LBE 4' End Profile Drawing

  • LBE 4' Exploded View

Applications

Suitable for suspended applications using cable or chain. Flexibility to meet low bay or high bay requirements in warehouses, distribution centers, sport facilities, manufacturing facilities, retail store or unique modern spaces.

Features

  • Compact, rigid and lightweight construction.
  • Easy snap on lens to ease maintenance.
  • Lens can be secured by screws for security.
  • Reflector option for aisle distribution.
  • Power connections are facilitated through KO’s in sides, ends and top.
  • Top access plate provides quick field wiring.
  • Light engine (optional)
  • IR-Tec Sensor (optional)
  • Custom LED mounting available for customer supplied module.
  • Optional material finishes.
  • Rigid polycarbonate lens
  • Compatible with A.L.P. suspension systems

Specifications

Dimensions
Length 24.1 or 46.1”
Width 5”
High 6”

Housing
Silver anodized
Pre-painted white

Lens
Extruded polycarbonate lens in clear or diffuse

Power entry:
7/8 KO’s located on sides, ends and top

Optional Add-Ons

Universal Yoke and Toggle Suspension Kit
