The ELFT13 flat center troffer luminaire component kit is an unwired LED fixture kit that features a diffuser highlighted by a flat center section design motif. It leverages an Architectural FT13 Troffer Diffuser from RLR Industries with A.L.P.’s proven, durable 2’x2’ EL housings and door frame for performance and versatility. A new, low profile external driver box improves performance and efficiency.
For use in commercial applications such as offices, schools, lobbies and any space which utilizes grid ceiling systems and uses troffers for illumination.

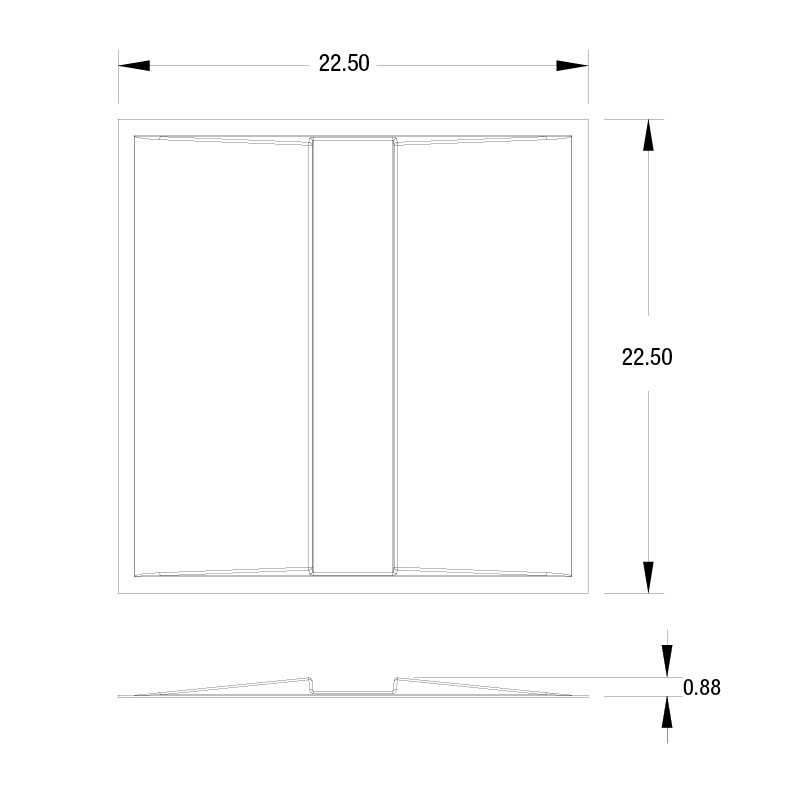

2’x2’ constructed with proprietary blend of LED acrylic and impact acrylic resins.
Approximately 75% with excellent pixel hiding power. Custom Formulations with higher Light Transmission and higher pixel hiding power available upon request.

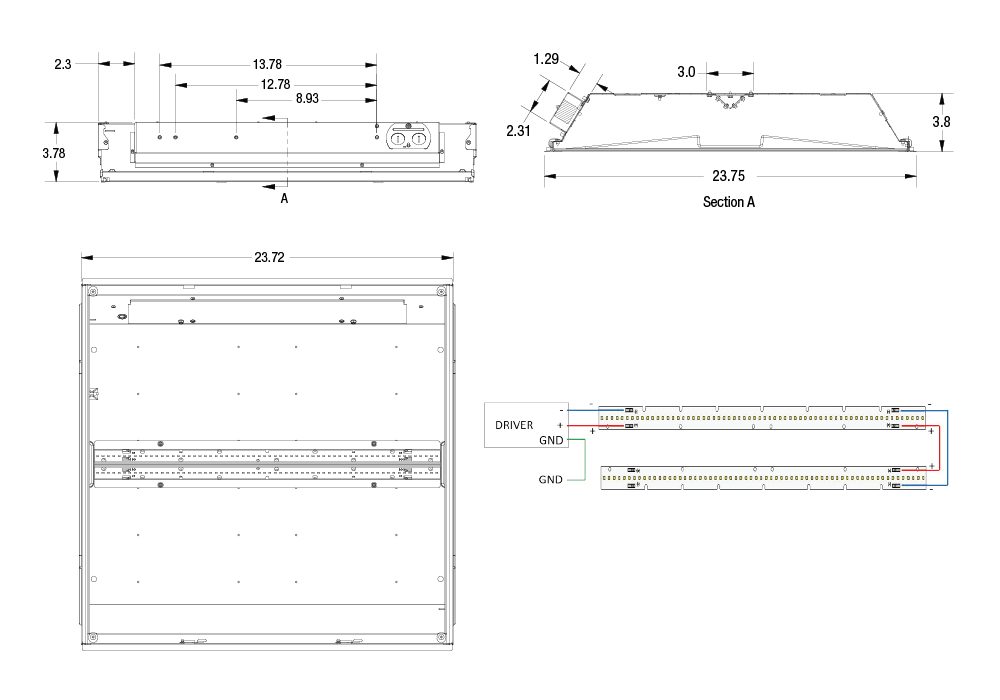

3-3/4” deep. Die-formed 23-gauge steel.
Snap into housing or can be secured with #8 x 3/8” screw or 1/8” pop rivet with 1/8” to 3/16” grip (not included).
Mounted outside the fixture and access to the driver compartment is available from the floor side of the installed unit.
White polyester polymer with a minimum 82% reflectivity.
